彩钢板和彩钢复合板有什么不同

彩钢板和彩钢复合板有什么不同

彩涂钢板是一种经轧制、冷弯成各种波形的压型钢板。适用于工业民用建筑、仓库、特殊建筑、大跨度钢结构房屋的屋面、墙面及内外墙装饰。彩涂钢板它具有重量轻、强度高、色彩丰富、施工方便快捷、抗震、防火、防雨、使用寿命长、免维护等特点,得到了广泛的应用。
彩钢夹芯板是一种新型的多功能建筑板。表面为 彩涂钢板,可填充泡沫、聚氨酯、岩棉等。具有保温、隔热、隔音、轻质、防水、抗震、装饰等特点。广泛用于工业和民用建筑的非承重墙、屋顶、天花板以及单层复合房屋的墙板。适用于机械、电子、化工、医药、生物、食品、卫生等洁净厂房的隔断和天花板。

10、隔热彩板
彩钢夹芯板的规格和性能:
1.彩钢夹芯板通常采用舌槽插入式,具有安装方便、省时、节材、平整度好、强度高等优点。它特别适用于天花板和隔墙系统。
2.厚度(mm):50、75和100;
3.长度(mm):由于连续成型生产,板长可根据用户需要确定;
4.宽度(毫米):1150(1200)
5.芯材特性:
A.聚苯乙烯体积密度:≥ 15kg/m3,导热系数≤ 0.036w/m.k,最高工作温度:约100℃
B.岩棉的体积密度:≥ 110kg/m3,导热系数:≤ 0.043w/m.k,最高工作温度:约500℃
A |不燃性:B1级

B.不燃性:A类

39.天物彩板印花彩板价格 (4)

A.950瓦楞彩钢夹芯板集瓦楞纸板和夹芯板于一体,强度是普通平面彩钢夹芯板的三倍。采用隐藏式自钻螺钉与屋架连接,不损坏彩钢夹芯板外露部分,延长彩钢夹芯板使用寿命;板与板之间的连接采用扣帽式,便于施工,提高效率。最大的特点是不容易渗水。
B.岩棉保温彩钢夹芯板芯材以玄武岩等天然矿石为主要原料,经高温熔融成纤维,加入适量粘结剂固化而成。本产品适用于工业设备、建筑物、船舶的隔热、隔音,以及净化室、防爆、防火车间的吊顶、隔墙。
C.PU聚氨酯彩钢夹芯板夹芯板粘接强度不小于0.09mpa,燃烧性能达到B1级,夹芯板挠度为Lo/200时,夹芯板抗弯承载力不小于0.5kn/m2(LO是支架之间的距离)

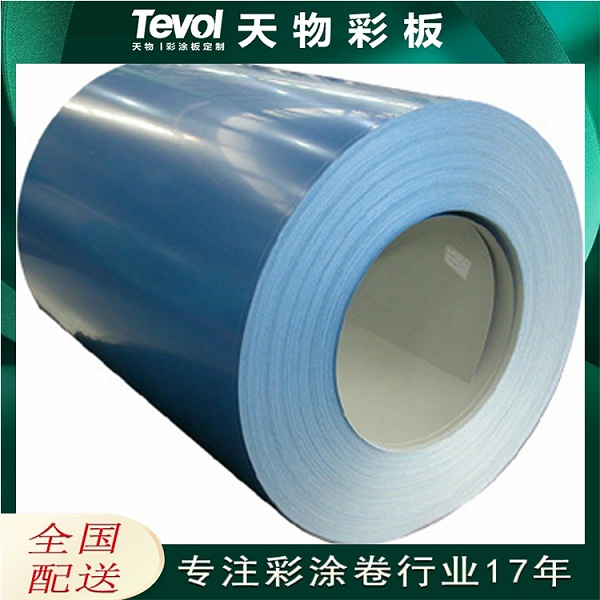

Color coated steel plate is a kind of profiled plate which is rolled and cold bent into various wave shapes. It is suitable for roof, wall and internal and external wall decoration of industrial and civil buildings, warehouses, special buildings and long-span steel structure houses. It has the characteristics of light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, rain prevention, long service life and maintenance free, It has been widely used.

The color steel sandwich panel is a new type of multi-function building board. The surface is colored steel plate, which can be filled with foam, polyurethane, rock wool and so on. It has the characteristics of heat preservation, heat insulation, sound insulation, light weight, waterproof, earthquake resistance and decoration. It is widely used in non load-bearing walls, roofs, ceilings of industrial and civil buildings and wallboards of single-layer composite houses. It is suitable for partitions and ceilings of clean workshops such as machinery, electronics, chemical industry, medicine, biology, food and health.
Specification and performance of color steel sandwich panel:
1. Color steel sandwich panel, which often adopts tongue and groove insertion type, has the advantages of convenient installation, time saving, material saving, good flatness and high strength. It is especially suitable for ceiling and partition system.
2. Thickness (mm): 50, 75 and 100;
3. Length (mm): due to continuous forming production, the plate length can be determined according to the needs of users;
4. Width (mm): 1150 (1200)
5. Core material properties:
A. Polystyrene bulk density: ≥ 15kg / m3, thermal conductivity ≤ 0.036w / m.k, maximum service temperature: about 100 OC
B. Bulk density of rock wool: ≥ 110kg / m3, thermal conductivity: ≤ 0.043w / m.k, maximum service temperature: about 500 OC
A | incombustibility: Class B1
B. Incombustibility: Class A
A. 950 corrugated color steel sandwich board integrates corrugated board and sandwich board, and its strength is three times higher than that of ordinary plane color steel sandwich board. It adopts hidden self drilling screws to connect with roof truss, does not damage the exposed part of color coated board, and prolongs the service life of color steel sandwich board; The connection between plates adopts buckle cap type, which is convenient for construction and improves efficiency. The biggest feature is that it is not easy to seep water.
B. The core material of rock wool thermal insulation color steel sandwich board is made of basalt and other natural ores as the main raw materials, which are melted into fibers at high temperature, added with an appropriate amount of binder and solidified. The product is suitable for thermal insulation and sound insulation of industrial equipment, buildings and ships, as well as ceiling and partition of purification room, explosion-proof and fire-proof workshop.
C. PU polyurethane color steel sandwich panel the bonding strength of the sandwich panel shall not be less than 0.09mpa, the combustion performance of the sandwich panel shall reach grade B1, and the bending bearing capacity of the sandwich panel shall not be less than 0.5kn/m2 when the deflection of the sandwich panel is Lo / 200 (LO is the distance between supports)
